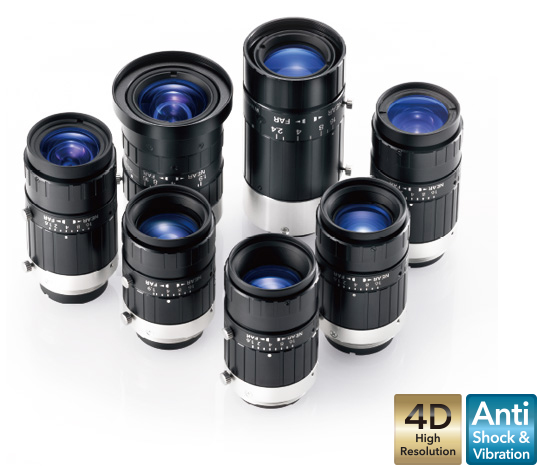

[photo] HF-XA-5M Series lenses standing upright and grouped together in a circle

HF-XA-5M Series - Overview

NEW
Lens Selector Contact Us
"4D High Resolution" lenses
HF-XA-5M Series
Compatible with 2/3" to 1.1" (max.)
large image sensor cameras

FUJINON HF-XA-5M series is designed for "4DHR" and compatible with IMX250 high performance CMOS image sensor (2/3", 5 megapixels, 3.45µm pixel pitch).

[photo] HF-XA-5M Series lenses standing upright and grouped together in a circle

HF-XA-5M series specification sheet

Model Compatible format sizes Focal length
(mm)
4/3 1.1 1 1/1.2 2/3 1/1.8 1/2 1/3
HF6XA-5M － － － － ● ● ● ● 6
HF8XA-5M － － － － ● ● ● ● 8
HF12XA-5M － － － ○ ● ● ● ● 12
HF16XA-5M － － － ○ ● ● ● ● 16
HF25XA-5M － － － ○ ● ● ● ● 25
HF35XA-5M － － － ○ ● ● ● ● 35
HF50XA-5M － ○ ○ ○ ● ● ● ● 50

● Compatible sensor size (std.): Ideal size to maximize the target resolution.

○ Compatible sensor size (max.): Adaptable sensor size varies depending on the model. Select a lens after checking the peripheral light amount and resolution.

Main features Minimizing degradation of resolution even when the shooting distance or aperture is changed Anti-shock & vibration design

Our unique mechanical design* realizes anti-shock and vibration performance compatible with various installation environments.

  • * Patent Pending
  •  * Only the HF6XA-5M and HF50XA-5M are equipped with Anti Shock & Vibration.
Compact design
Selectable three locking holes

FUJINON HF-XA-5M series comes with three locking holes each for the iris and focus. They are located on the lens barrels, allowing you to select the optimum holes for your needs.

Lineups
Focal length [mm]6
Iris range (F. no)F1.9-F16
Angle of view(2/3")74.7°×58.1°
Working Distance*1[mm]∞‐100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M37.5 x 0.5
MountC-mount
Weight (approx.) [g]100
Sensor size(std.)*22/3"(3.45μm)
Sensor size (max.)*32/3"(3.45μm)
TV distortion [%]-2.88
Dimension [mm]Φ39×51
Focal length [mm]8
Iris range (F. no)F1.6-F16
Angle of view(2/3")58.4°×44.6°
Working Distance*1[mm]∞‐100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M25.5 x 0.5
MountC-mount
Weight (approx.) [g]79
Sensor size(std.)*22/3"(3.45μm)
Sensor size (max.)*32/3"(3.45μm)
TV distortion [%]-1.99
Dimension [mm]Φ29.5×51.5
Focal length [mm]12
Iris range (F. no)F1.6-F16
Angle of view(2/3")40.1°×30.3°
Working Distance*1[mm]∞‐100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M25.5 x 0.5
MountC-mount
Weight (approx.) [g]79
Sensor size(std.)*22/3"(3.45μm)
Sensor size (max.)*31/1.2"(4.5μm)
TV distortion [%]-1.26
Dimension [mm]Φ29.5×51.5
Focal length [mm]16
Iris range (F. no)F1.6-F16
Angle of view(2/3")31.4°×23.7°
Working Distance*1[mm]∞-100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M25.5 x 0.5
MountC-mount
Weight (approx.) [g]71
Sensor size(std.)*22/3"(3.45μm)
Sensor size (max.)*31/1.2"(4.5μm)
TV distortion [%]-0.60
Dimension [mm]Φ29.5×46.0
Focal length [mm]25
Iris range (F. no)F1.6-F16
Angle of view(2/3")20.0°×15.0°
Working Distance*1[mm]∞-100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M25.5 x 0.5
MountC-mount
Weight (approx.) [g]72
Sensor size(std.)*22/3"(3.45μm)
Sensor size (max.)*31/1.2"(4.5μm)
TV distortion [%]-0.07
Dimension [mm]Φ29.5×46.5
Focal length [mm]35
Iris range (F. no)F1.9-F16
Angle of view(2/3")14.2°×10.7°
Working Distance*1[mm]∞‐200
Operation of focusManual
Operation of irisManual
Filter thread [mm]M25.5 x 0.5
MountC-mount
Weight (approx.) [g]60
Sensor size(std.)*22/3"(3.45μm)
Sensor size (max.)*31/1.2"(4.5μm)
TV distortion [%]0.10
Dimension [mm]Φ29.5×41.5
Focal length [mm]50
Iris range (F. no)F2.4-F16
Angle of view(2/3")10.4°x7.8°
Working Distance*1[mm]∞‐200
Operation of focusManual
Operation of irisManual
Filter thread [mm]M30.5x0.5
MountC-mount
Weight (approx.) [g]95
Sensor size(std.)*22/3"(3.45μm)
Sensor size (max.)*31.1"(4.5μm)
TV distortion [%]0.01
Dimension [mm]φ33.0x66.5
  • *1 From front of lens barrel
  • *2 Sensor size(std.): Ideal size to maximize the target resolution
  • *3 Sensor size(max.): Adaptable sensor size varies depending on the model. Select a lens after checking the peripheral light amount and resolution.
