The gyro effect created by the flywheel absorbs vibration upto ±5° like that of moving vehicles, helicopters and boats and maintains a steady view.
All lenses and the prisms have a high-quality EBC multi-coating, increasing light permeability for bright, natural color reproduction.
Strong and corrosion resistant for use in harsh conditions from -20℃ to +50℃. Airtight waterproof structure is filled with dry nitrogen gas to prevent fogging inside. Can be used upside down, allowing the binoculars to be held in either hand.
- The gyro effect created by the flywheel absorbs the vibration up to ±5° like that of moving vehicles, helicopters and boats and maintains a steady view.
- All lenses and the prisms have a high-quality EBC multi-coating, increasing light permeability for bright, natural color reproduction.
- Strong and corrosion resistant for use in harsh conditions from -20℃ to +50℃.
- Airtight waterproof structure is filled with dry nitrogen gas to prevent fogging inside.
- Can be used upside down, allowing the binoculars to be held in either hand.

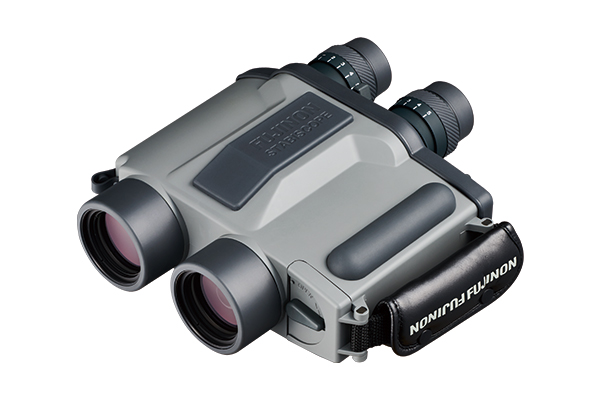

![[photo] STABISCOPE S1240 binoculars](png/pic_stabiscope_01.png)
- Magnification
12
- Objective diameter (mm)
40
- Field of view (°)
4.7
- Apparent field of view (°) *1
52.4
- Field of view at 1000m (m)
82
- Exit pupil
3.3
- Relative Brightness
11.1
- Eye relief
(mm) 17
- Minimum Focus Distance (m) *2
28.8
- Height (mm)
210
- Width (mm)
200
- Depth (mm)
90
- Weight (g)
(w/o Battery) 1,800
- Adustment range for interpupillary distance (mm)
59-71
- Dioptric adjustment range (±mm)
±5
- Focus type
IF
- Water resistant*3
2m-5min
- Battery
AA×4 or 2CR5×1
- Operationg temperature
−20℃ - +50℃
- The gyro effect created by the flywheel absorbs the vibration up to ±5° like that of moving vehicles, helicopters and boats and maintains a steady view.
- All lenses and the prisms have a high-quality EBC multi-coating, increasing light permeability for bright, natural color reproduction.
- Strong and corrosion resistant for use in harsh conditions from -20℃ to +50℃.
- Airtight waterproof structure is filled with dry nitrogen gas to prevent fogging inside.
- Can be used upside down, allowing the binoculars to be held in either hand.

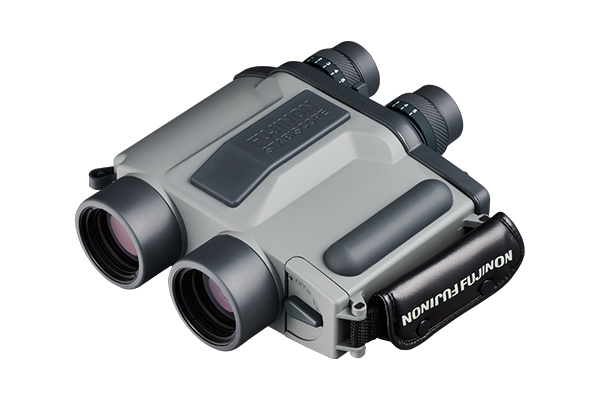

![[photo] STABISCOPE S1640 binoculars](png/pic_stabiscope_02.png)
- Magnification
16
- Objective diameter (mm)
40
- Field of view (°)
3.4
- Apparent field of view (°) *1
50.8
- Field of view at 1000m (m)
59
- Exit pupil
2.5
- Relative Brightness
6.3
- Eye relief (mm)
12
- Minimum Focus Distance (m) *2
51.2
- Height (mm)
200
- Width (mm)
200
- Depth (mm)
90
- Weight (g)
(w/o Battery) 1,800
- Adustment range for interpupillary distance (mm)
59-71
- Dioptric adjustment range (±mm)
±5
- Focus type
IF
- Water resistant*3
2m-5min
- Battery
AA×4 or 2CR5×1
- Operationg temperature
−20℃ - +50℃
- *1 Apparent field of view based on ISO14132-1:2002
- *2 MOD may differ depends on the viewer's sight in case of Indivisual focus.
- *3 Do not mean it can be used in water.
Bundled items: Neck strap, Wristband, DC regulator, input and output cords (for DC regulator), and 4 AA batteries.
