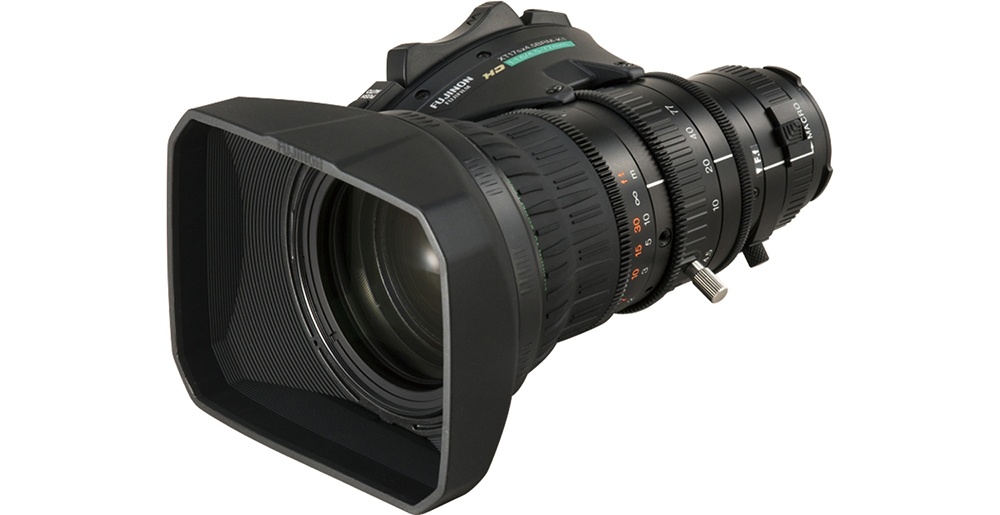

[photo] Fujinon 1/3 inch HD ENG camera lens

1/3″ HD ENG Lenses - Overview

NEW
Contact Us Catalog

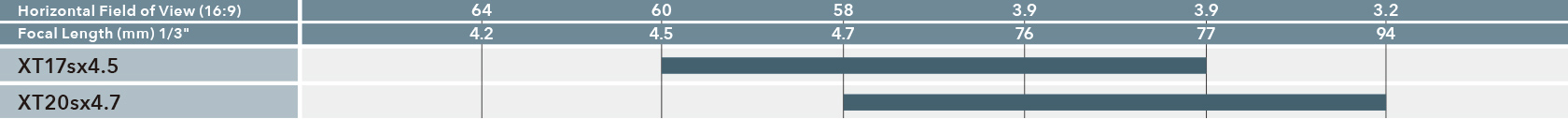

[image] Chart comparing the Horizontal Field of View (16:9) and the Focal Length (1/3 inch) by model number
Lineups
1/3" Series [eXceed Series]
XT17sx4.5BRM
  • HD Optical Performance
  • Newly eXceed Servo Grip
  • Quick zoom*1 and Auto Cruising
  • Latest EBC coatings for improved optical performance

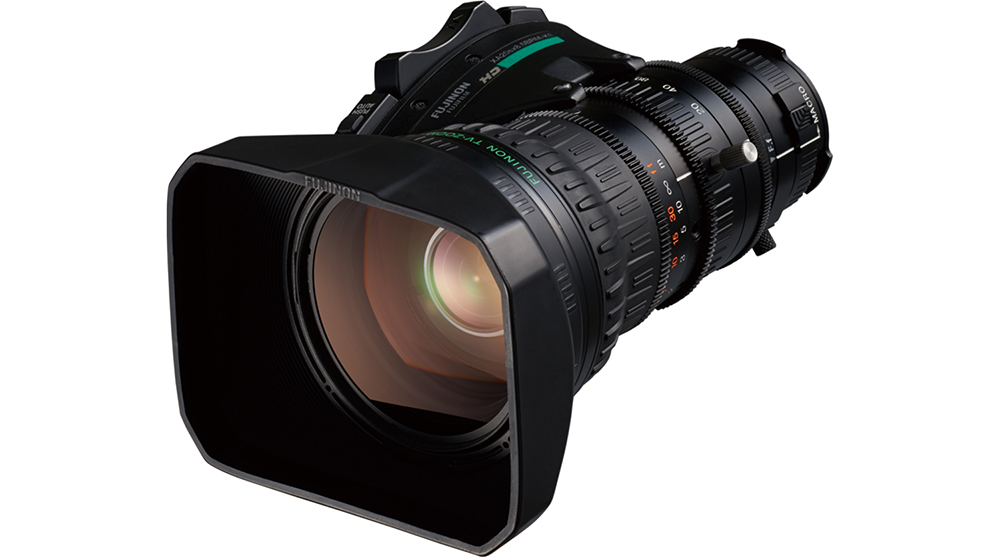

[photo] 1/3 inch HD ENG eXceed Series lens model XT17sx4.5BRM
Specifications
Model Name

XT17sx4.5BRM

Focal length

[1x]
4.5-77mm

[2x]
-

Zoom ratio

17x

Extender

-

Maximum relative aperture (F-no.)

1 : 1.6 (4.5-77mm)

Minimum object distance (M.O.D.) from front lens

0.95m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
4.5mm   999 x 562mm
77mm   60 x 34mm

[2x]
-

Angular field of view
16 : 9 Aspect ratio

[1x]
4.5mm  60.3° × 36.2°
77mm  3.9° × 2.2°

[2x]
-

Filter thread

M82 x 0.75

Approx. Size

φ85 x 175.6mm(φ x Length)

Approx. Mass

1.28kg (without lens hood)

XT20sx4.7BRM
  • HD Optical Performance
  • Newly eXceed Servo Grip
  • Quick zoom*1 and Auto Cruising
  • Latest EBC coatings for improved optical performance
[photo] 1/3 inch HD ENG eXceed Series lens model XT20sx4.7BRM
Specifications
Model Name

XT20sx4.7BRM

Focal length

[1x]
4.7-94mm

[2x]
-

Zoom ratio

20x

Extender

-

Maximum relative aperture (F-no.)

1 : 1.4 (4.7-88mm) / 1 : 1.5 (94mm)

Minimum object distance (M.O.D.) from front lens

0.9m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
4.7mm   901 x 506mm
94mm   47 x 26mm

[2x]
-

Angular field of view
16 : 9 Aspect ratio

[1x]
4.7mm  58.2° × 34.7°
94mm  3.2° × 1.8°

[2x]
-

Filter thread

M82 x 0.75

Approx. Size

φ85 x 189.8mm (φ x Length)

Approx. Mass

1.48kg (without lens hood)

  • *1 It is necessary to set lens up to use Quick Zoom function.
